ION R Downlight / 4 Sizes / 8 Colours
Available in 4 sizes, an extensive range of accessories and 15,000+ customisations, the ION R Downlight is an outstanding contender for all lighting needs. With 2 models, Standard and Wallwasher, the ION R Downlight can be specified for both horizontal and vertical lighting needs.
In search of a universal downlight range that balances form, function and performance, the ION R Series is the culmination of Unios’s years of researching to understand their supporters' needs. At every stage of its becoming, this series was purposefully engineered to make lighting easier for everyone, from specifiers and contractors to end-users.
Specifications
Brand: Unios
Model: Recessed
Sizes (4): Small | Medium | Large | XL
Material: Powder Coated Aluminium
Colours: Trim - Textured Black or White | 4 Baffle Colours
Colour Variations (8)

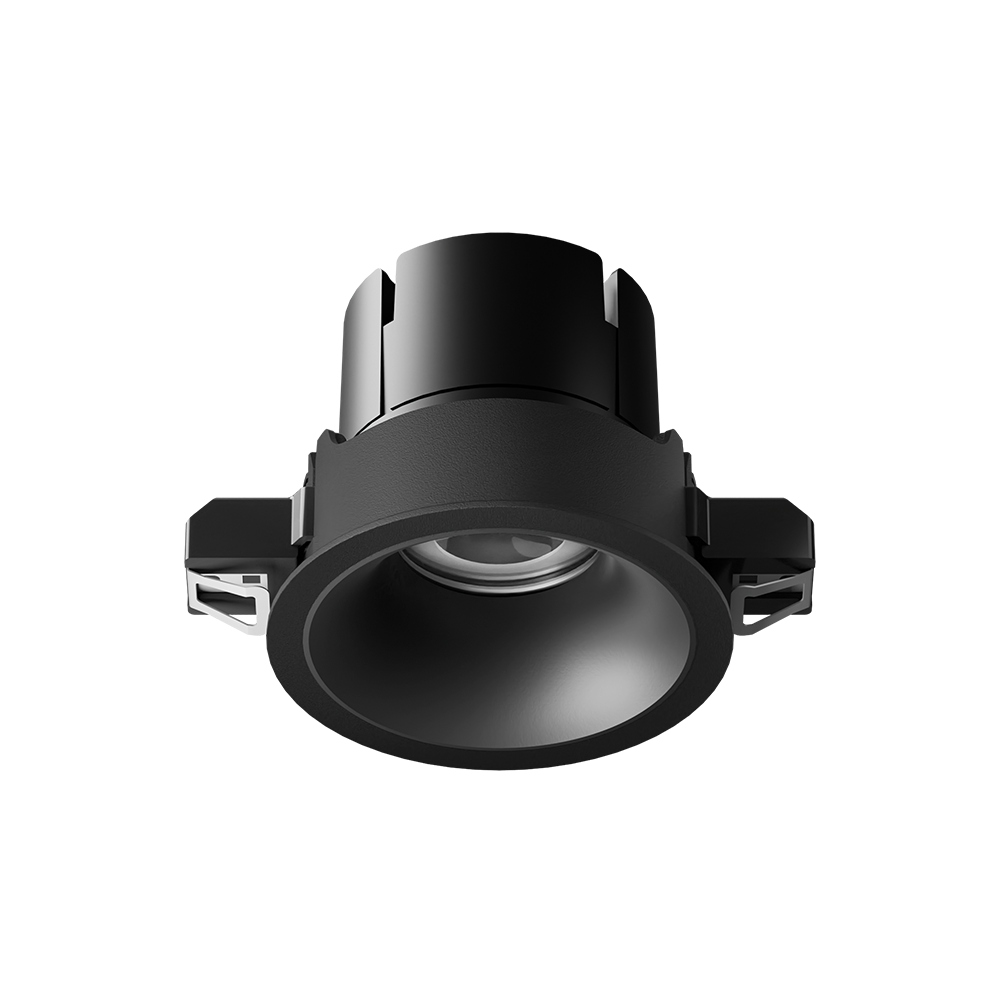

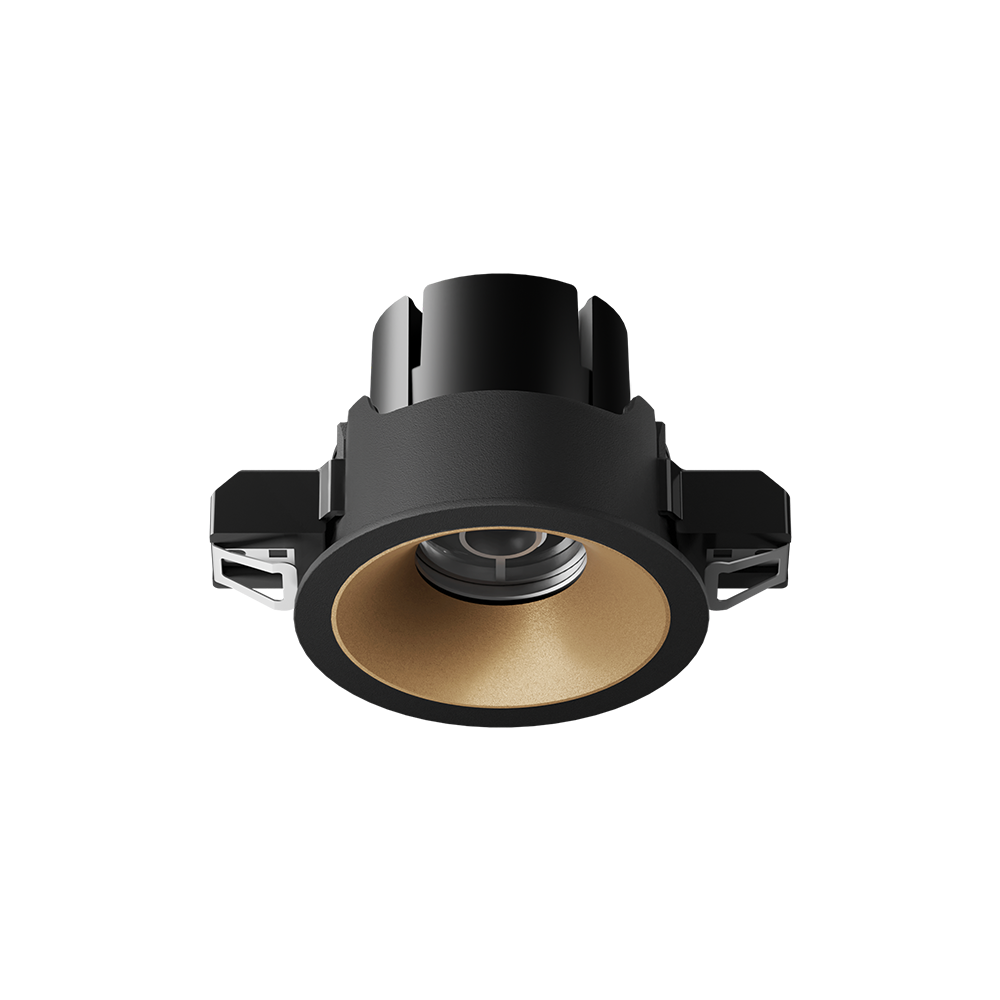

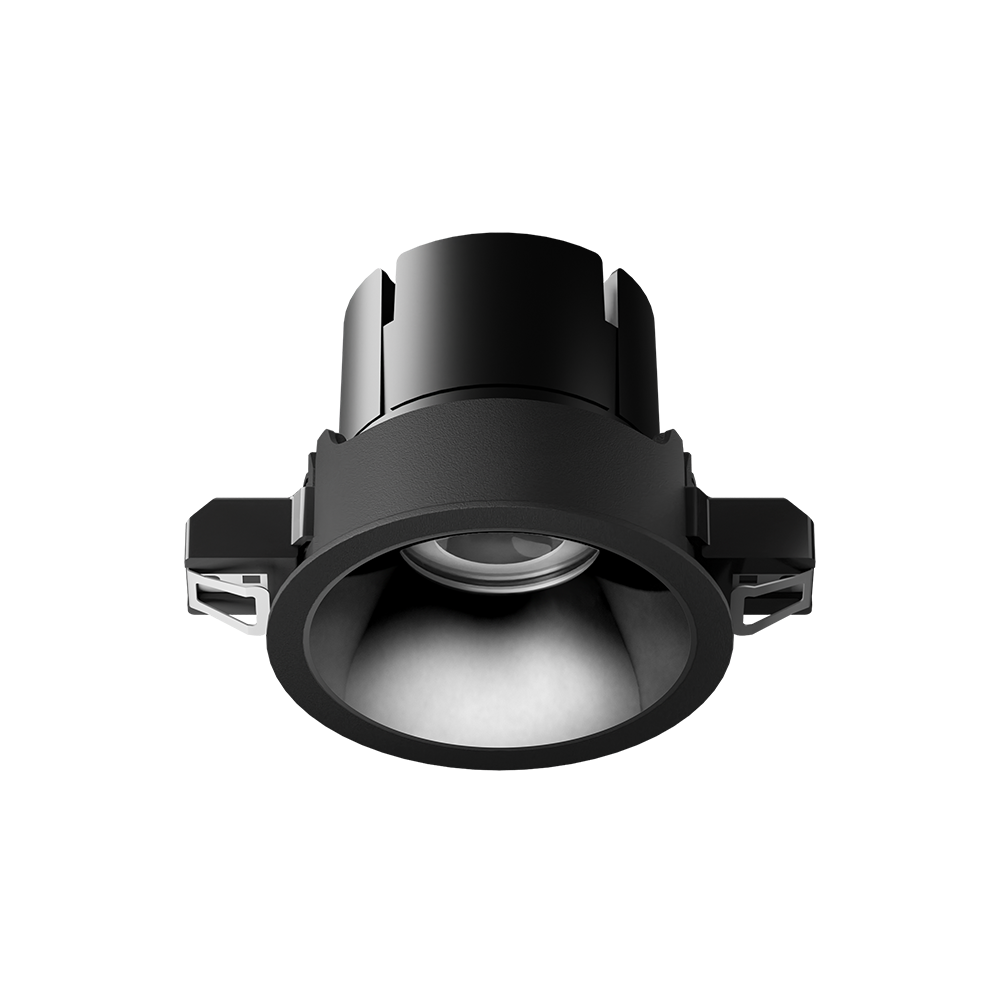

Textured Black/Matt Black | Textured Black/Matt Gold

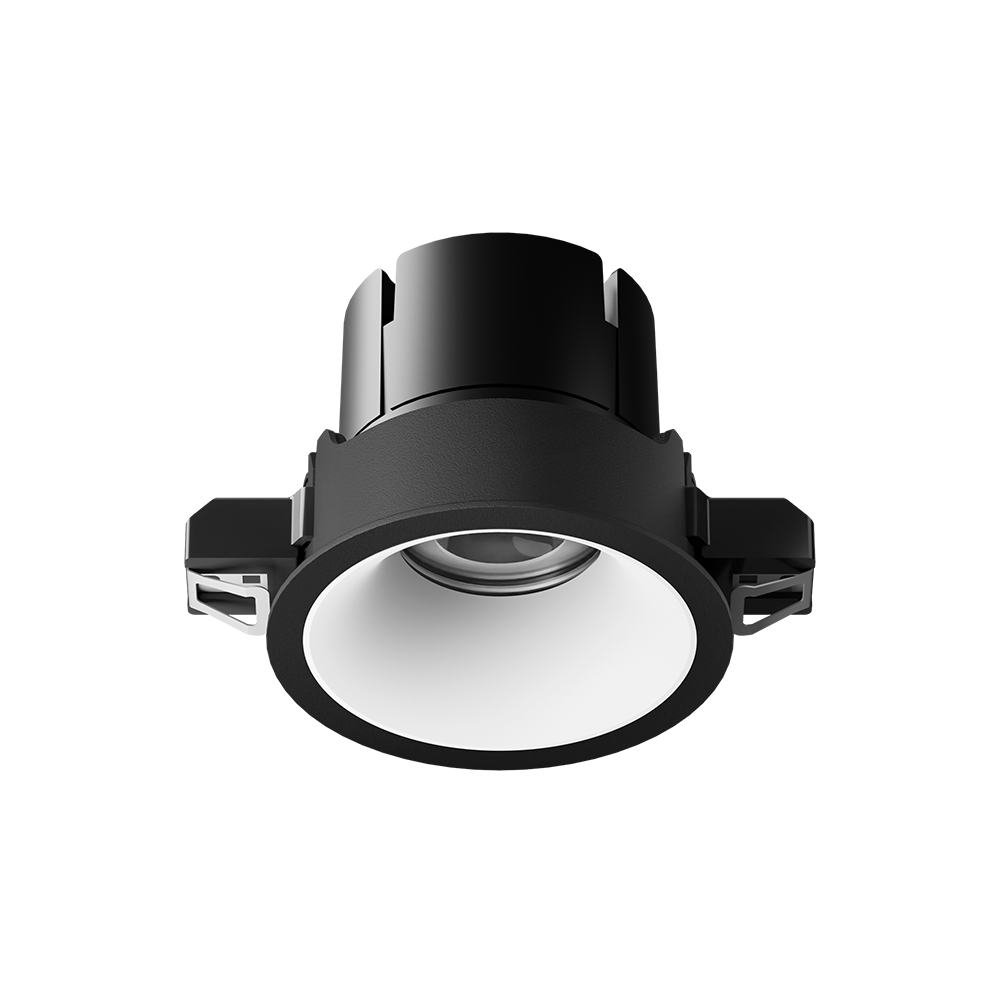

Textured Black/Stealth Metallic | Textured Black/Matt White

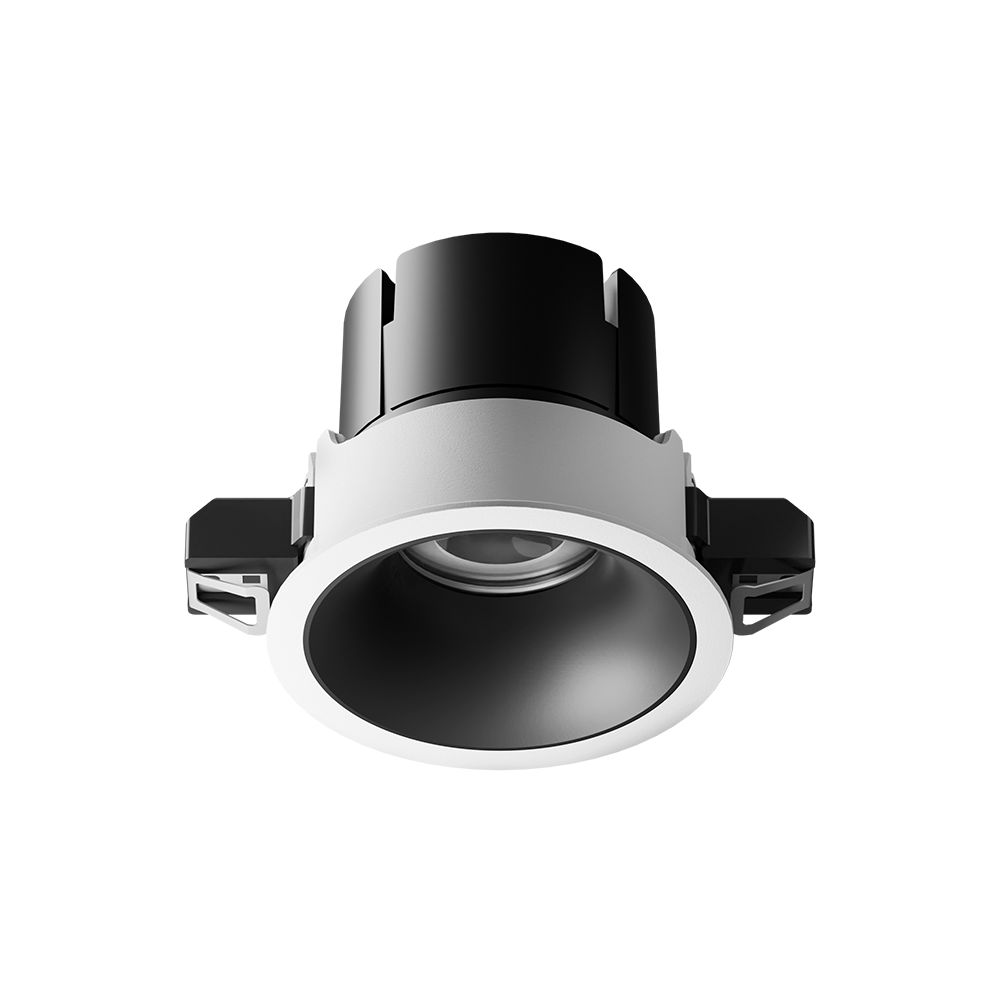

Textured White/Matt Black | Textured White/Matt Gold
Textured White/Stealth Metallic | Textured White/Matt White
Dimensions:
Small - Cutout Ø 76mm | Ø 89mm | Depth 74mm
Medium - Cutout Ø 92mm | Ø 103mm | Depth 85mm
Large - Cutout Ø 165mm | Ø 180mm | Depth 95mm
X Large - Cutout Ø 210mm | Ø 225mm | Depth 106mm
Colour Temps CCT: 2700K | 3000K | 4000K
UGR (70/50/20): <13
IP Rating: IP-54
CRI: 92+ (R9>50)
Beam Type: Standard | Elliptical
Optics: Narrow | Medium | Wide | Assymetric Wallwasher
Beam Angle (Standard): S - 12° | 30° | 50° M - 22° | 40° | 60° L - 30° | 45° | 60°
Beam Angle (Elliptical) -
S - 12x60°| 30x60°| 40x70° M - 20x60°| 35x70°| 50x70° L - 30x70°| 45x60°| 60x80°
Beam Angle (Asymmetrical Wallwasher) - 50º
Secondary Optics: Linear Lens | Honeycomb Lens | Softening | Asymmetric Wallwasher
Wattage:
Small - 9W
Medium - 13W to 15W
Large - 22W | 32W
X Large - 36W | 43W
Lumens at 3000K:
9W 937lm | 13W 1326lm | 22W 2322lm | 36W 3803lm
Efficacy: Up to 105.61lm/W
Class: Class II
SDCM: ≤2
Control Gear: Phase-Cut | Phase Pulse | DALI | Casambi Bluetooth
LED Lifetime: >55,000h L90B10
Warranty: 5 years
