ION R Adjustable Downlight / 3 Sizes / 8 Colours

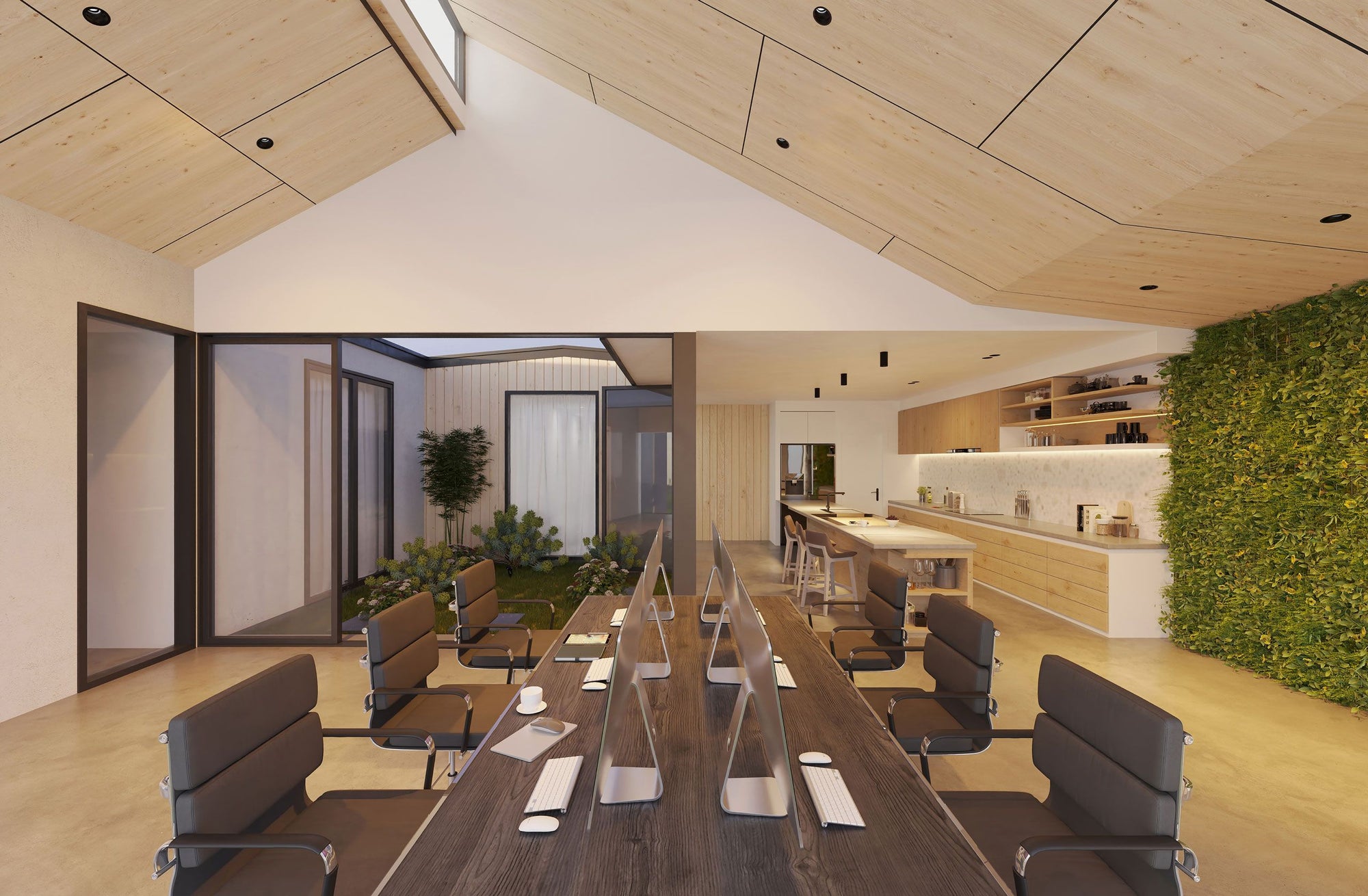

Designed for outstanding light control, the ION R Adjustable Downlight offers unparalleled directional flexibility of up to 355° rotation and 25° tilt, making it ideal for illuminating spaces with vaulted, pitched or raked ceilings, or highlighting objects of beauty.

In search of a universal downlight range that balances form, function and performance, the ION R Series is the culmination of Unios’s years of researching to understand their supporters' needs. At every stage of its becoming, this series was purposefully engineered to make lighting easier for everyone, from specifiers and contractors to end-users.

Specifications

Brand:  Unios

Model:  Adjustable - Recessed

Sizes (3):  Small | Medium | Large

Adjustability:  355° Rotation | 25° Tilt

Material:  Powder Coated Aluminium

Colours:  Trim - Textured Black or White | 4 Baffle Colours

Colour Variations (8)

Textured Black/Matt Black | Textured Black/Matt Gold

Textured Black/Stealth Metallic | Textured Black/Matt White

Textured White/Matt Black | Textured White/Matt Gold

Textured White/Stealth Metallic | Textured White/Matt White

Dimensions:

Small - Cutout Ø 76mm  | Ø 89mm | Depth 89mm

Medium - Cutout Ø 92mm | Ø 103mm | Depth 113mm

Large - Cutout Ø 125mm | Ø 142mm | Depth 147mm

Colour Temps CCT:  2700K | 3000K | 4000K | 2700K-6500K Tunable White

UGR (70/50/20):  <13

IP Rating:  IP-54

CRI:  92+ (R9>50)

Beam Type:  Standard | Elliptical

Optics:  Narrow | Medium | Wide

Beam Angle (Standard):  S - 12° | 30° | 50°   M - 22° | 40° | 60°   L - 30° | 45° | 60°

Beam Angle (Elliptical) -

S - 12x60°| 30x60°| 40x70°  M - 20x60°| 35x70°| 50x70°  L - 30x70°| 45x60°| 60x80°

Secondary Optics:  Linear Lens | Honeycombe Lens | Softening

Wattage:

Small - 7W (200mA)

Medium - 9W (250mA) | 13W (350mA)

Large - 22W (600mA) | 29W (800mA)

Lumens at 3000K:

7W 659lm | 9W 899lm | 13W 1258lm | 22W 2237lm | 29W 2982lm

Efficacy:  Up to 106.90lm/W

Class:  Class II

SDCM:  ≤2

Control Gear:  Phase-Cut | Phase Pulse | DALI | Casambi Bluetooth

LED Lifetime:  >55,000h L90B10

Warranty:  5 years
